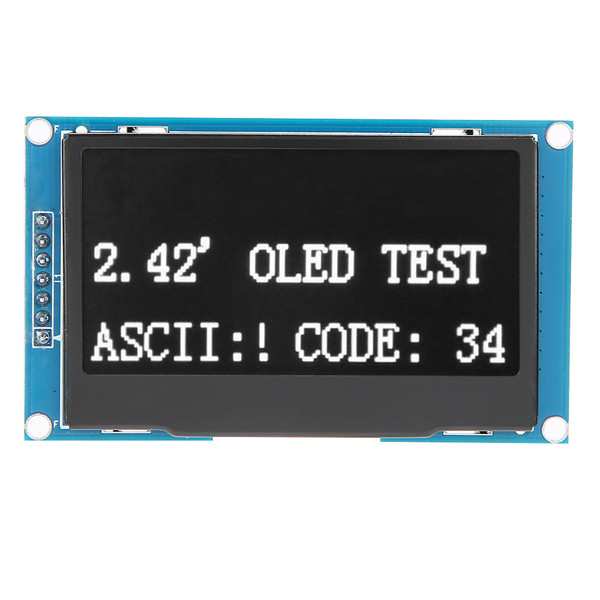

2.42" 128X64 OLED Display Module 12864 IIC I2C Serial Peripheral Interface (White)

Write a Review
$53.10
2.42" 128X64 OLED Display Module 12864 IIC I2C Serial Peripheral Interface (White)
Weight (g):
25.00
Length (cm):
9.00
Height (cm):
1.00
Adding to cart… The item has been added

Product Overview

Features

  • This is a 2.42 inch OLED display module of 128x64 resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current
  • Working without backlight, the OLED display module could give out light by itself
  • In low ambient light conditions such as a dark room, an OLED screen can achieve a higher contrast ratio than an LCD
  • OLED display module also has a much faster response time than an LCD
  • The display with small dimension is suitable for MP3, function cellphone, smart health device, etc

Specifications

  • Features:
  • This is a 2.42 inch OLED display module of 128x64 resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current. Working without backlight, the OLED display module could give out light by itself. In low ambient light conditions such as a dark room, an OLED screen can achieve a higher contrast ratio than an LCD. OLED display module also has a much faster response time than an LCD.
  • The display with small dimension is suitable for MP3, function cellphone, smart health device, etc. The seventh pin CS signal is leaded by default; If you do not need it, you can solder R18, then CS signal is directly grounded. You can use Serial Peripheral Interface or IIC, and the default interface is Serial Peripheral Interface(R17 is soldered, R15, R13 are not soldered); change interface by soldering or desoldering R15, R17, R13(Serial Peripheral Interface: R17, IIC: R15, R13)
  • Specifications:
  • Display Size: 2.42"
  • Text Color: White
  • Resolution: 128x64
  • Driver IC: SSD1309
  • Serial Peripheral Interface Pins:
  • 1.GND(Power Supply Ground)
  • 2.VCC(Power Supply Positive)
  • 3.SCL(Clock Line)
  • 4.SDA(Data Line)
  • 5.RES(Reset Line)
  • 6.DC(Data/Command)
  • 7.CS(Chip Select)
  • Package Includes:
  • 1 x OLED Display Module
  • Note:
  • This kit requires certain professional knowledge and ability, please make sure you know how to wire and use it.
  • Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
