Product Overview
Features
- With excellent aging resistance and UV endurance, it can be used in harsh environment.
- The O ring on connector is perfect to seal out water and dust to prevent corrosion.
- Cable connection adopts method of rivet and lock, quick \u0026 simple for assembly.
Specifications

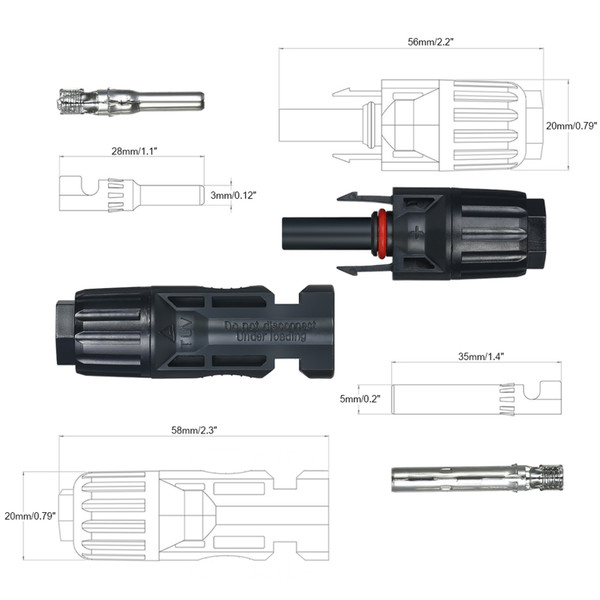

- These are style connectors which are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications. The included assembly tool makes it easier for users to quickly and easily tighten and separate the connectors.
- Features:
- With excellent aging resistance and UV endurance, it can be used in harsh environment.
- The O ring on connector is perfect to seal out water and dust to prevent corrosion.
- Cable connection adopts method of rivet and lock, quick & simple for assembly.
- The included assembly tool makes it easier to tighten and separate the connectors.
- Great solution for parallel connection of multiple panels together in a solar field.
- Specifications:
- Quantity: 20 Pairs
- Rated Current: 16A(2.5㎡, AWG14), 30A(4㎡, AWG12), 52A(6㎡, AWG10)
- Withstanding Voltage: 1000V DC
- Typical Contact Resistance: 2mΩ
- Suitable Cable Size: 2.5mm²/4mm²/6mm²
- conservation Class: Class Ⅱ
- conservation Degree: IP67
- Insulation Material: PPO
- Contact Material: Copper, Tin Plated
- Flame Class: UL94-V0
- Ambient Temperature Range: -40°C ~ +105°C
- Insertion Force: less than 50N
- Withdrawal Force: over 50N
- Package Weight: 213g-407g / 7.52oz-14.37oz
- Note:
- The color of spanner will be sent randomly(blue or orange), please in kind prevail.
- Package List:
- 20 * Pairs Connectors
- 2 * Spanner
Package List
- 20 * Pairs Connectors
2 * Spanner
