57 Integrated Close Loop Hybrid Servo Stepper Motor Set with Coding Function DC24-50V

Write a Review
$201.78
57 Integrated Close Loop Hybrid Servo Stepper Motor Set with Coding Function DC24-50V
Weight (g):
1800.00
Length (cm):
26.00
Height (cm):
16.00
Adding to cart… The item has been added

Product Overview

Features

  • Adopt advanced 32-bit special motor control digital signal processing chip and vector close-loop control technology.
  • Step-and-loop close-loop circuit system can improve motor output the moment of force and speed without losing motion synchronization.
  • Adjust the current according to the load to reduce the motor temperature rise.
  • Suitable for various mechanical load conditions (including low rigidity pulleys and pulleys) without adjusting the gain parameters.
  • The motor runs smoothly and the vibration is slight, which improves the dynamic performance of acceleration and deceleration.

Specifications

  • Features:
  • 1. Adopt advanced 32-bit special motor control digital signal processing chip and vector close-loop control technology.
  • 2. Step-and-loop close-loop circuit system can improve motor output the moment of force and speed without losing motion synchronization.
  • 3. Adjust the current according to the load to reduce the motor temperature rise.
  • 4. Suitable for various mechanical load conditions (including low rigidity pulleys and pulleys) without adjusting the gain parameters.
  • 5. The motor runs smoothly and the vibration is slight, which improves the dynamic performance of acceleration and deceleration.
  • 6. 0 speed static capability without vibration after positioning is completed.
  • 8. Built-in position and alarm output signals for easy PC monitoring and control.
  • 9. The position tolerance alarm function guarantees safe operation of the processing equipment.
  •
  • Specification:
  • Condition: 100% Brand New
  • Motor Model: 57HSE2N-D25
  • Material: Carbon Steel + Copper
  • Power Supply: DC24~50V
  • Output Current Peaking Value 6.0A (varies according to load)
  • Logic Input Current: 7~20mA
  • Pulse Frequency: 0~200kHz
  • Suitable Motor: 57HSE
  • Encoder Line: 1000
  • Insulation Resistance: ≥500MΩ
  • Cooling Method: Natural Cooling or Use of An External Heat Sink
  • Working Conditions:
  • Environment to Avoid Dust, Oil Mist and Corrosive
  • Temperature: 0~50℃
  • Humidity: 40-90% RH
  • Vibration: 5.9 meter / s2Max
  • Storage Temperature: 0~50℃
  • Motor the Moment of Force: 2N.m
  • Rated Current: 4A
  • Shaft: 8mm
  • Maximum Speed: 2000rpm
  • Rated Speed: 1000rpm
  • Impulse Response Frequency: 200kHz.
  •

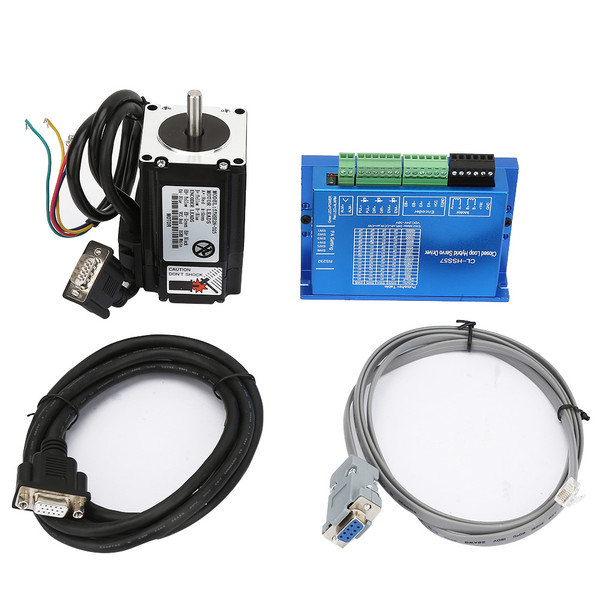

  • Package List:
  • 1 * Drive
  • 1 * Stepper Motor
  • 2 * Connecting Cables
  • 1 * User Manual
