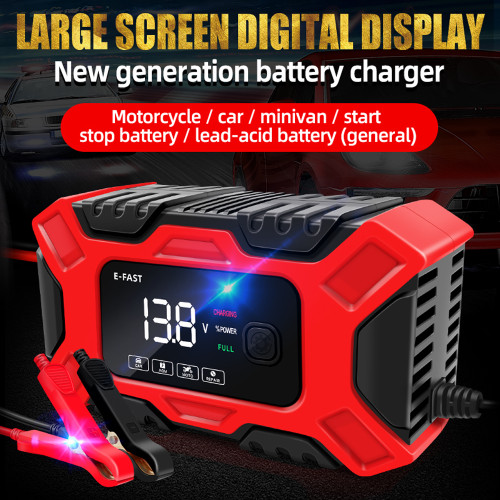

Product Overview
Features
- With 7‑phase charging function, 7‑phase charging, desulfurization, trick current charging, constant current charging, constant voltage charging, battery power detection.
- Only the voltage and temperature are displayed in the detection of the phase, and the power grid effect is consistent with the recovery mode), also can charge compensation and floating charging. (There is no lithium battery in this phase).
- With overcharge protection function, it can prevent the battery life from being reduced due to overcharge and improve reliability. Therefore, you can connect the charger to the battery indefinitely.
- If it detects that the temperature is too high, it will automatically start the overheating protection program. When the temperature returns to normal, the initial charging state will be restored.
- 7‑level charger is suitable for most battery types and with Microprocessor Control (CPU). They can also help recycle used and sulfated batteries. Suitable for Calcium, Gel and AGM, Wet, EFB 12V 24V Ternary Lithium Iron 12V 24V Lithium Iron Battery, etc.
Specifications
- Item Type: Battery Charger
- Material: ABS
- Size: Approx. 160 x 100 x 50mm/6.3 x 4.0 x 2.0in
- Nominal Power: 12V 6A /24V 3A
- Battery Range: 6 - 120Ah
- Thermal Protection: 65℃ +/- ℃
- Efficiency: Application, 85%
- Meet the Standards: CB, CE, IEC60335, EN61000, EN55014
- Length of Output Line: Approx. 115cm/45.3in
- Length of Intput Line: Approx. 80cm/31.5in
- Function
- Technology Mode Switch: Yes
- Polarity Protection: Yes
- Output Short Circuit Protection: Yes
- Non-Battery Link Protection: Yes
- Overvoltage Protection: Yes
- Overheating Protection: Yes
- Cooling Fan: Yes
Package List
- 1 x Battery Charger
1 x Manual
Note
1. Please use strictly according to the instructions.
2. Do not charge into the atmosphere.
3. Avoid high temperature and humidity when charging.
4. When charging, the battery surface should not be covered with objects.
5. When the sulfide material at both ends of the positive and negative elec‑trodes of the battery is too high, the sulfide material should be removed first, so that the battery can be better charged.
