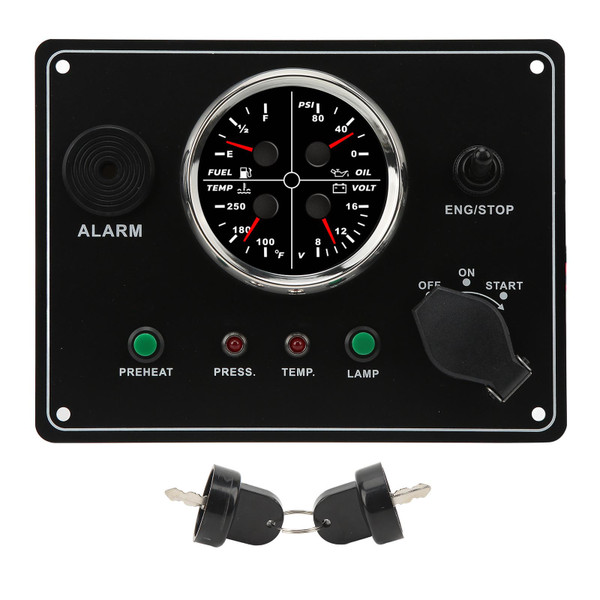

Car Center Console Dashboard Panel Oil Level Oil Pressure Water Temperature Voltage 4 in 1 Multi Pointer Combination Meter

Features

• Quality Material: The multifunctional center control instrument panel is made of aluminum alloy panel, 316L stainless steel front cover bezel, anti fog curved glass cover, industrial grade electronic components and structural parts manufacturing, can withstand mechanical shock and vibration, will not corrode or rust, even in acid, alkali and wet environment can be used normally.
• High Performance: Center console dashboard's curved glass cover with anti fog function, IP67 waterproof and dustproof rating, can work normally in ‑30‑+75℃ environment, perfect for marine and various harsh environments. Stepper motor driven pointer, pointer display has the characteristics of high indication accuracy, good repeatability, high versatility, reliable and stable, and easy to use.
• Accurate Display: 4 pointer combination, can accurately display the remaining fuel tank F‑1/2‑E, fuel tank fuel pressure value 0‑80PSI, water tank water temperature 100‑250F, and voltmeter 8‑16V, and also comes with an alarm, Engines Stop, Start ON OFF, low oil pressure alarm, water temperature alarm, backlight button, and preheat button and other functions.
• Basic Parameters: Center console dashboard panel is designed with ultra wide working voltage, the long term working voltage is 9‑32V, up to 36V (≤ 1 minute), working current ≤ 100mA, ultra low power consumption design. It can be installed in the center console of your RV yacht or engineering vehicle, only 210x160mm unit area is required, which saves space and can keep track of the engine status.
• Application: The multi pointer combination meter has a snap on back harness connector to ensure a sturdy connection between the meter and the harness, so that it will work reliably even when it is used in strong vibration situations. It can be used in engine, generator set, yacht, fishing boat, ship, construction machinery, agricultural machinery, modified car, etc.

Specifications

• Item Type: Car Center Console Dashboard
• Material: Aluminum Alloy, ABS, Stainless Steel, Tempered Glass
• Size: Approx. 210 x 160mm/8.27 x 6.3in
• Function Display: Multi Function Panel Can Be Multi Pointer Display Oil Level, Oil Pressure, Water Temperature, Voltage Four Units, Red Backlight, and Comes with an Alarm, Engines Stop, Start ON OFF, Oil Pressure Too Low Alarm, Water Temperature Alarm, Backlight Button, and Preheat Button and Other Functions
• Oil Level Meter Indication Range: F-1/2-E, (Signal Input 0-190ohm)
• Oil Pressure Gauge Indication Range: 0-80PSI, (Signal Input 10-184ohm)
• Water Temperature Meter Indication Range: 40-120 ℃, (Signal Input 310-23ohm)
• Voltmeter Indication Range: DC8-16V
• Operating Voltage: DC12V Circuit System
• Operating Current: ≤ 100mA
• Operating Temperature: -30℃-+ 75℃
• Storage Temperature: -40 ℃ - + 85 ℃
• Protection Level: IP67, Can Work Underwater 1m Position, Excellent Anti Fog Function
• Application: This Instrument Panel Can Be Installed in Your Yacht or Engineering Vehicle Center Control Position, Just Need 210x160mm Unit Area, Greatly Save Space, Through the Panel Data at Any Time to Understand the Status of the Engine
• Application: Multifunctional Center Control Instrument Panel Can Be Used for Engines, Generator Sets, Rvs, Yachts, Fishing Boats, Ships, Construction Machinery, Agricultural Machinery, Modified Vehicles and Other Fields.

Package List

• 1 x Car Center Console Dashboard

  2 x Key

Note

1. It is recommended to find a professional electrician to assist in the installation
