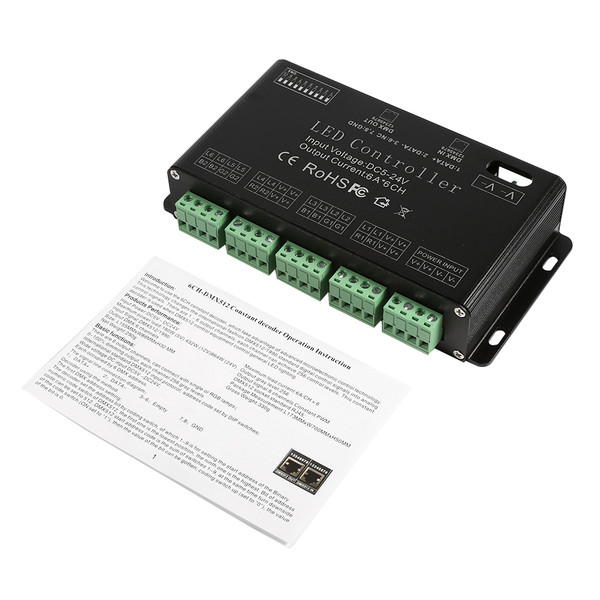

Product Overview
Features
- There are 6 output channels, can connect with single or RGB lamps
- 0-100% dimming output, each channel 256 gray levels
- International standard DMX512 input protocol, address code set by DIP switches
- Wide voltage DC input DC5V ~ DC24V
- Each occupied by 12 DMX address
Specifications
- Description: This item takes advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 1-6 output channels, each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting. Features: There are 6 output channels, can connect with single or RGB lamps. 0-100% dimming output, each channel 256 gray levels. International standard DMX512 input protocol, address code set by DIP switches. Wide voltage DC input DC5V ~ DC24V. Each occupied by 12 DMX address. Specification: Condition: 100% Brand New Color: Black Input Power: DC5V-24V Maximum Load Current: 6A/CH * 6 Maximum Power Load: 180W(5V), 432W(12V), 864W(24V) Output Grey Level: 256 Input Signal: DMX512/1990 Output Signal: 6 Channels Constant PWM Output DMX: 6 Channels DMX512 Socket: Standard RJ45 Product Size: Approx. 155 * 88 * 32mm / 6.1 * 3.5 * 1.3inch Product Weight: Approx. 350g Package Included: 1 x 6 Channel DMX 512 LED Decoder 1 x User Manual
