Product Overview
Features
- 12X OPTICAL ZOOM: Meeting camera supports 12X optical zoom and 70.5 degree horizontal viewing angle. Precise motor drive with advanced control algorithms for very quiet and stable operation, moving accurately and quickly to the designated position and taking wide shots.
- HIGH RESOLUTION: Video conference room camera utilizes a 1/2.8 inch, 8.51 MP, "for Exmor R" CMOS Sensor Sensor for 3840x2160 ultra high resolution images. Supports MJPG YUY2 H.264 encoding, of which MJPG supports 4kp30 output.
- 4K HD VIDEO: Conference room camera supports 3840x2160P30/25, 1080P60/50/30/25, 720P60/50, 3840x2160P29, 1080P59, 1080P29, 720P59, 720P29 HD Multimedia Interface video Output. Support 4KP30/25, 1080P30/25, 720P30/25 USB3.0 video output.
- 256 POSITION PRESET BITS: Conference room camera system can preset 256 positions including pan, tilt, and zoom through the serial port, and the preset data can be saved even when the camera is powered off.
- MULTIFUNCTION REMOTE CONTROL: Equipped with an easy to operate remote control, in addition to the basic settings, as well as the level, tilt, zoom and other controls, you can also call up the menu to set the camera's relevant parameters. The OSD menu in English and Chinese can be controlled by the remote control.
Specifications
- Item Type: Video Conference Room Camera
- Material: ABS
- Signal System: 3840×2160P30/25, 1080P60/50/30/25, 720P60/50, 1080i60/50
- Sensor: 1/2.8 Inch CMOS Sensor, 8.51MP
- Scanning Mode: Progressive
- Lens: Optical Zoom 12x,F1.6-F3.5,F=4.3-40.9mm
- Digital Zoom: 12x
- Minimum Illumination: Support Ultra Low Illumination: 0.1Lx At F1.6 (Color), 0.01Lx At F1.6 (B/W)
- Shutter: 1/30s-1/10,000s
- White Balance: Auto,Indoor,Outdoor,Manual
- Backlight Compensation: Support
- Digital Noise Reduction: 2D And 3D Digital Noise Reduction
- Signal To Noise Ratio: ≥52dB
- Horizontal Field Of View: 70.5 Degrees (Wide End) To 5.9 Degrees (Far End)
- Horizontal Rotation Range: ±170 Degrees
- Vertical Rotation Range: -30 To +90 Degrees
- Horizontal Rotation Speed Range: 1 O/S-100 O/S
- Vertical Rotation Speed Range: 1 O/S-60 O/S
- Horizontal And Vertical Flip: Support
- Number Of Presets: 255
- Preset Accuracy: ±0.1 Degree
- Input Output Interface:
- HD Video Interface:
- HD Multimedia Interface 2.0: Supports Up To 4KP30
- USB3.0: Supports Up To 4KP30 (MJPG 4kp30)
- Memory Card: Maximum Support 128G (Not Included)
- Network Port: Maximum Support 4KP30
- Communication Interface:
- 1 Way, RS 232 IN, Maximum Distance: 30m / 98.4ft, VISCA for Pelco D for Pelco P Protocol
- 1 Channel, RS 422, Maximum Distance: 1200m / 3937ft, VISCA for Pelco D for Pelco P Protocol
- Power Supply Interface: JEITA Type (DC IN 12V) HEC3800
- General Specifications
- Operating Temperature: 0°C To +45°C
- Storage Temperature: -10°C To +60°C
- Remote Control Batteries: 2 x AAA Batteries (Not Included)

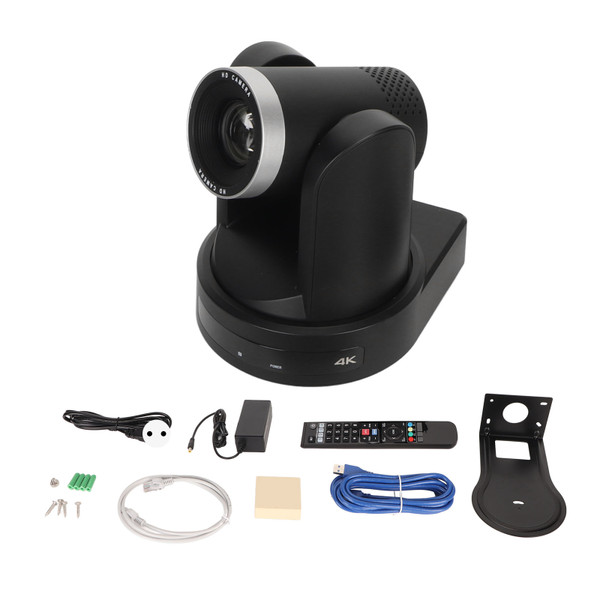

Package List
- 1 x
- Video Conference Room Camera
1 x USB Cable
1 x Bracket
1 x Screw Accessory Kit
1 x Remote Control
1 x Network Cable
1 x Network Cable Box
1 x Power Cord
1 x Power Adapter
1 x Instruction Manual
